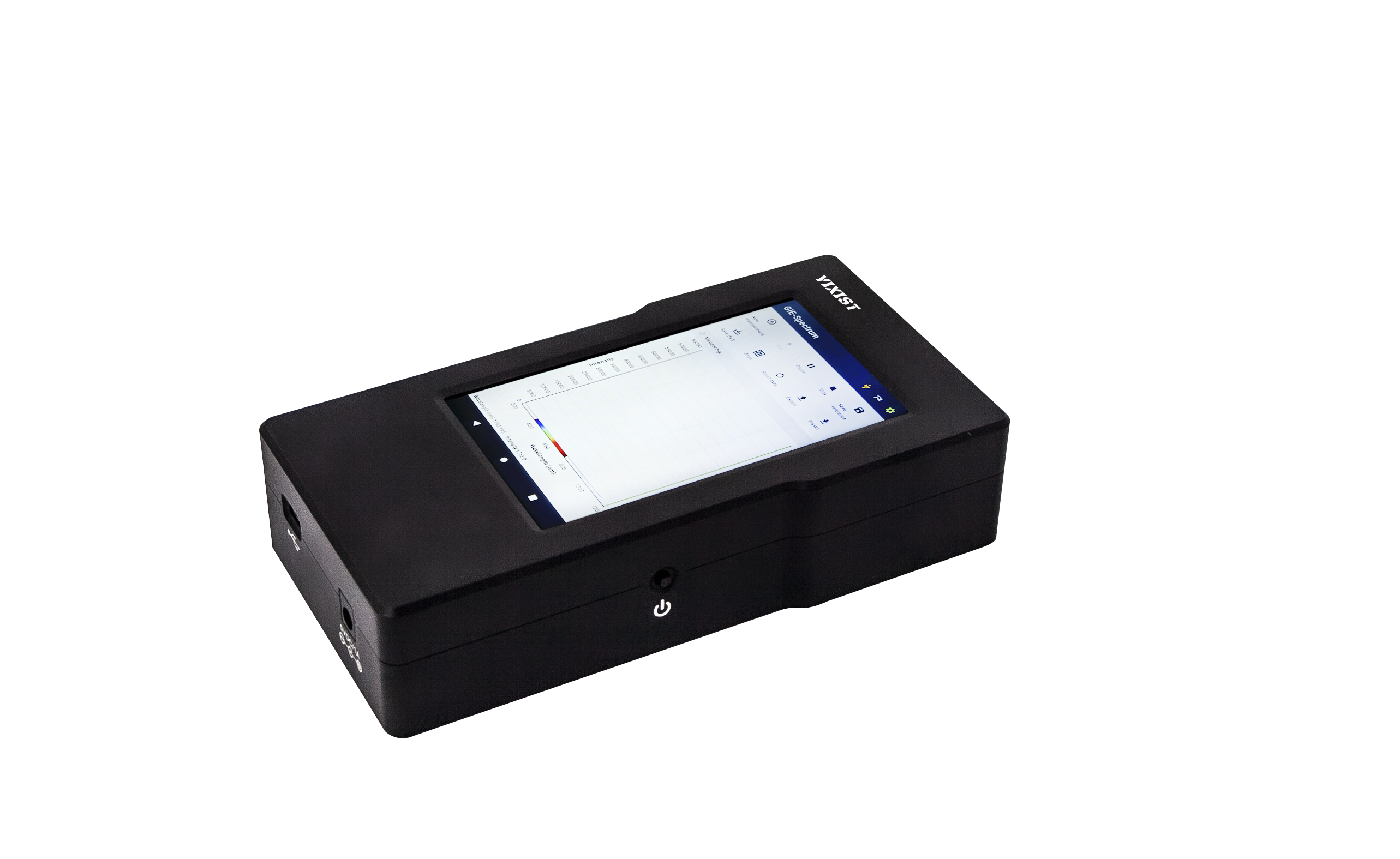

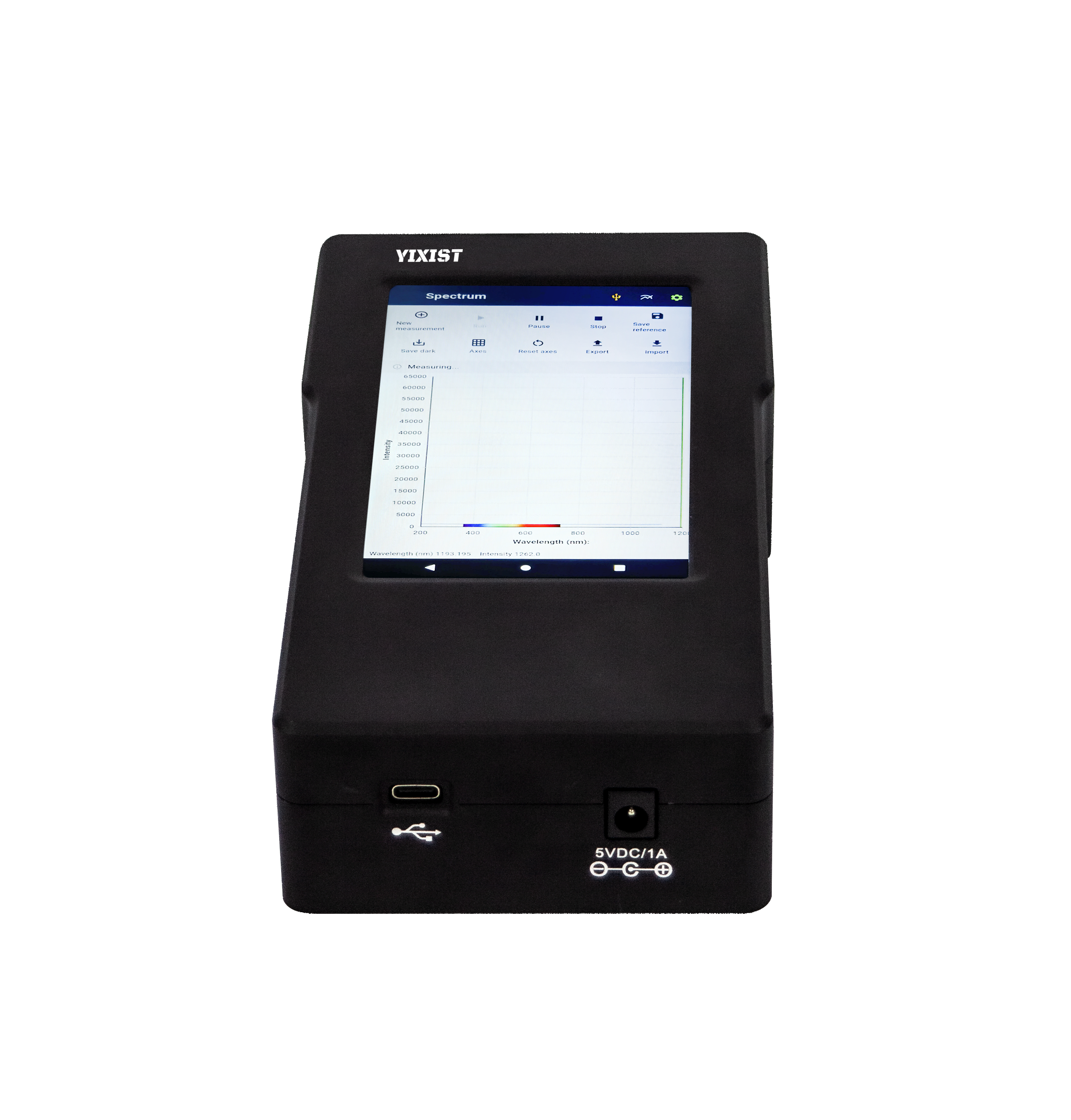

YSM-8112-02 # Handheld Spectrometer, 5 ” Touchscreen, 40G Storage

Summary

The YSM-8112-02 is a handheld spectrometer engineered for outdoor and industrial field applications. It features an integrated rechargeable battery, a touchscreen display, and approximately 40 GB of onboard storage, facilitating direct acquisition of spectral signals in situ. The device utilizes a 2048-pixel detector with a minimum integration time of 0.5 ms and includes a standard SMA905 fiber optic interface. Users can configure the spectral range and resolution to suit diverse application requirements, making it broadly applicable for measurements such as light source spectra, transmittance, absorbance, reflectance, and Raman spectroscopy.

Features

- 2048-pixel detector
- Transmittance, reflectance, absorbance, concentration, Raman spectroscopy, and radiant flux measurements (requires separate configuration of a suitable light source and measurement accessories)
- Linear variable filter for elimination of second-order and higher diffraction spectra
- USB Type-C communication interface
- Time serials measurements
- Approximately 40 GB of onboard storage

Typical Model Recommendation

*Other wavelength ranges and resolutions can be customized.

Applications

- Light source spectral measurement
- Transmittance, absorbance, and reflectance measurement
- Fluorescence spectral measurement

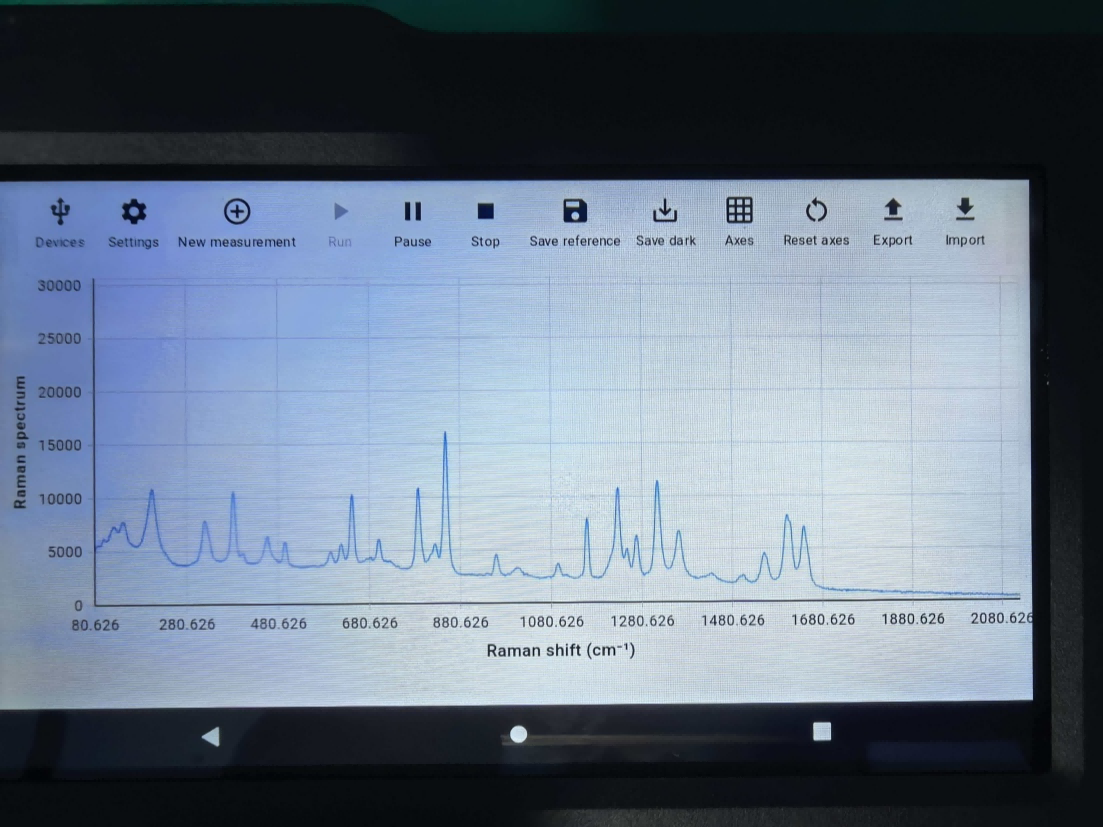

- Raman spectral measurement
