785 nm Raman Laser Integration Guide for OEM Instruments

Trying to tame a 785 nm Raman laser for your OEM instrument can feel like herding photons with a spaghetti fork—alignment drama, noise gremlins, and integration chaos everywhere you look.

This guide shows you how to integrate the laser step by step, cut noise, and boost stability, backed by industry best practices and standards like ISO 21348-compliant recommendations.

🔧 Mechanical Integration of 785 nm Raman Lasers into OEM Platforms

Design rigid, compact mounts that keep the 785 nm Raman laser stable under shock, vibration, and temperature changes. This improves spectral repeatability and lowers long‑term drift.

Plan for service access, alignment reference points, and clear thermal paths from the laser base to the instrument chassis to maintain performance in field conditions.

1. Mounting Footprint and Tolerances

Define a standard bolt pattern and datums early. This reduces rework and speeds OEM integration across multiple product lines.

• Use three‑point kinematic mounts where possible
• Keep flatness within 0.05 mm over the base
• Reserve space for strain‑relieved fiber pigtails

2. Vibration and Shock Management

Control vibration paths so the laser, spectrometer, and sample interface move together, preserving alignment.

• Add compliant pads between module and frame
• Verify stability with sweep and random vibration tests
• Lock screws with thread lockers or clamps

3. Stray Light and Mechanical Baffling

Use a dark, baffled optical cavity around the laser and collection optics to cut background and boost Raman signal‑to‑noise.

• Black anodized or flocked surfaces
• Knife‑edge apertures at key pupils
• Sealed covers to block ambient light

4. Spectrometer Integration and Access

Match the mechanical interface to your spectrometer to keep the optical path short and rigid.

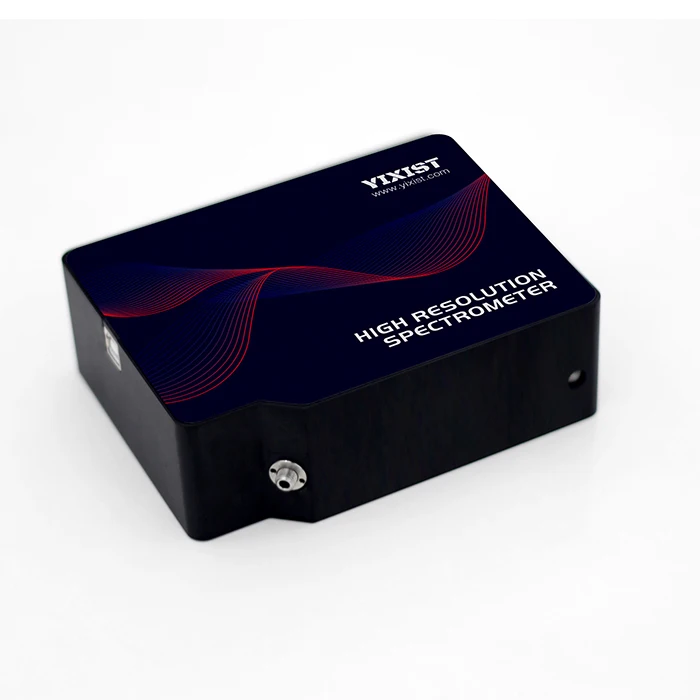

• For visible‑NIR, pair with YSM-8102-03 # [Area Array] High Resolution Spectrometer, HAM S16010, 200-1100nm
• Include alignment pins and service windows
• Provide gasketed joints for field sealing

⚡ Electrical Interfaces, Power Management, and Driver Requirements for 785 nm Sources

Stable drive electronics are vital for Raman intensity and wavelength stability. Design low‑noise power and safe control logic around the 785 nm laser module.

Plan for soft‑start, interlocks, and temperature‑aware control to protect the diode and meet safety standards.

1. Driver Topology and Modulation

Choose a low‑noise constant‑current driver with analog or digital modulation as needed by your measurement timing.

• Ripple < 0.1% for best spectral stability
• Fast enable for gated measurements
• Integrated current and temperature limits

2. Power Budget and Efficiency

Estimate power early to size supplies and thermal paths correctly.

3. Noise, Grounding, and EMC

Use clean grounding and filtering to avoid coupling noise into the Raman baseline.

• Star grounds between laser, spectrometer, and CPU
• Shielded cables with 360° terminations
• LC filters on supply rails to the driver

4. Data‑Driven Power Optimization

Log current, temperature, and optical power to refine setpoints for lifetime and stability.

📡 Fiber Coupling, Beam Conditioning, and Optical Alignment for Raman Efficiency

Efficient coupling and clean beam quality raise Raman signal while lowering laser power needs, heat load, and eye‑safety risk.

Align fibers, lenses, and filters as a tight, repeatable module for OEM production.

1. Fiber Selection and Coupling

Match core size and NA to the laser and spectrometer to avoid loss and over‑filling.

• 50–100 µm core for high‑resolution systems
• Use XYZ stages during coupling
• Epoxy‑free joints for high power where possible

2. Beam Shaping and Filtering

Condition the beam before it reaches the sample to reduce background and hot spots.

• Collimators matched to fiber NA
• Clean‑up filters to block side modes
• Top‑hat or slightly defocused spots for solids

3. Alignment to the Spectrometer

Keep the collection path short and rigid from probe to spectrometer slit or fiber.

• For NIR, consider YSM-8105-05 # 128 Pixels InGaAs NIR Spectrometer, HAM G13913, Pixels 50×250µm, 950-1700nm
• Use dowel pins to lock orientations
• Verify focus with line‑spread tests

🧪 Thermal Control, Wavelength Stability, and Long-Term Reliability Considerations

Temperature directly affects 785 nm wavelength and lifetime. Robust thermal design keeps the laser locked to the target band.

Combine hardware control with firmware limits and diagnostics.

1. TEC Design and Setpoints

Design TEC capacity for worst‑case ambient and duty cycle.

• Maintain diode case within ±0.1 °C for stable spectra
• Use NTC feedback close to the chip
• Limit maximum current in firmware

2. Wavelength and Spectral Calibration

Pair the laser with a stable spectrometer and regular references.

• Use YSM-8102-03 # [Area Array] High Resolution Spectrometer, HAM S16010, 200-1100nm for tight Raman shift mapping
• Record Raman peaks of known standards
• Apply software corrections over time

3. Lifetime, Derating, and Monitoring

Run the diode below its maximum ratings and monitor key health indicators.

🧬 Selecting 785 nm Raman Modules for OEM Instruments — Recommended: YIXIST

Choose 785 nm Raman modules that balance optical power, stability, footprint, and service options to speed OEM development.

YIXIST modules and spectrometers provide aligned components and clear documentation for fast design‑in.

1. Core Selection Criteria

Focus on a few key metrics when comparing Raman modules.

• Output power and allowed duty cycle
• Wavelength tolerance and drift vs. temperature
• Integrated TEC and safety features

2. Matching Modules to Application

Map your application needs to module performance and optics.

• Handheld: compact, low‑power, rugged
• Lab: higher power, richer controls
• Process: sealed housing, remote monitoring

3. Why Work with YIXIST

YIXIST offers matched lasers, probes, and spectrometers, plus support for OEM integration and volume manufacturing.

• Optimized 785 nm Raman modules
• High‑resolution and NIR spectrometers in the same ecosystem
• Engineering help from design to scale‑up

Conclusion

Thoughtful mechanical, electrical, optical, and thermal design lets 785 nm Raman lasers deliver stable performance in OEM instruments. Matching lasers with suitable spectrometers and probes improves sensitivity and repeatability.

By planning for alignment, power integrity, temperature control, and lifetime monitoring from the start, designers reduce field issues and speed certification and market launch.

Frequently Asked Questions about 785 nm laser for raman spectroscopy

1. Why is 785 nm popular for Raman spectroscopy?

785 nm balances fluorescence suppression and detector sensitivity. It reduces background compared with visible lasers while still working well with silicon and InGaAs detectors.

2. How much power do I need for 785 nm Raman?

For most benchtop systems, 50–300 mW at the sample is enough. Use higher power only when optics, safety, and sample heating are well controlled.

3. How does temperature affect a 785 nm Raman laser?

Diode wavelength shifts with temperature, changing the Raman shift calibration. Stable TEC control keeps wavelength and spectra consistent over time.

4. Can I modulate a 785 nm Raman laser?

Yes. Many OEM modules support analog or digital modulation. Keep rise and fall times within driver limits and avoid overshoot that can damage the diode.

5. What safety measures are needed for 785 nm systems?

Use proper housings, interlocks, beam blocks, and laser safety eyewear for 785 nm. Label the instrument with the correct laser class and warnings.
