YSM-8111-02 # High-Speed IoT Spectrometer 2048 Pixels

Summary

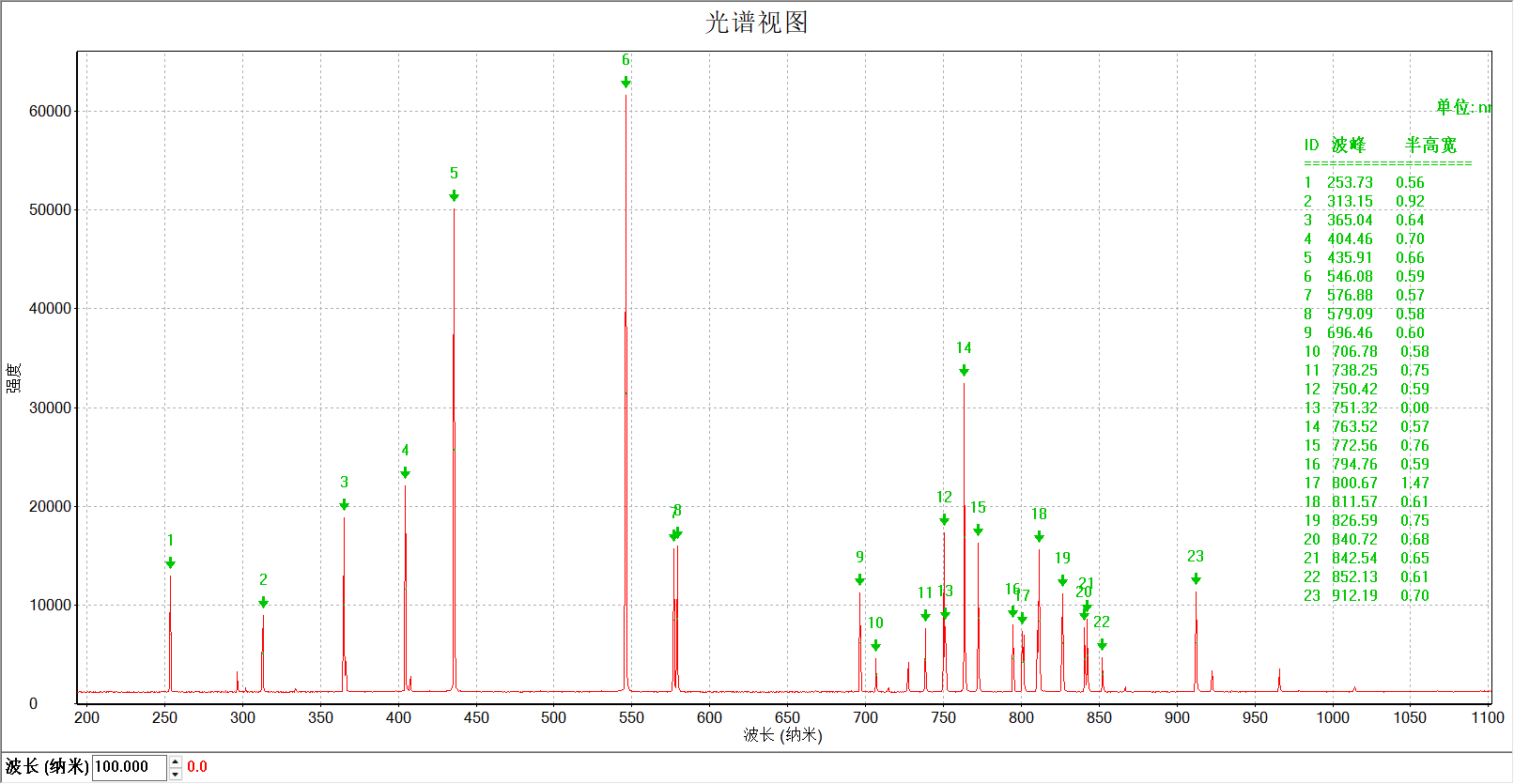

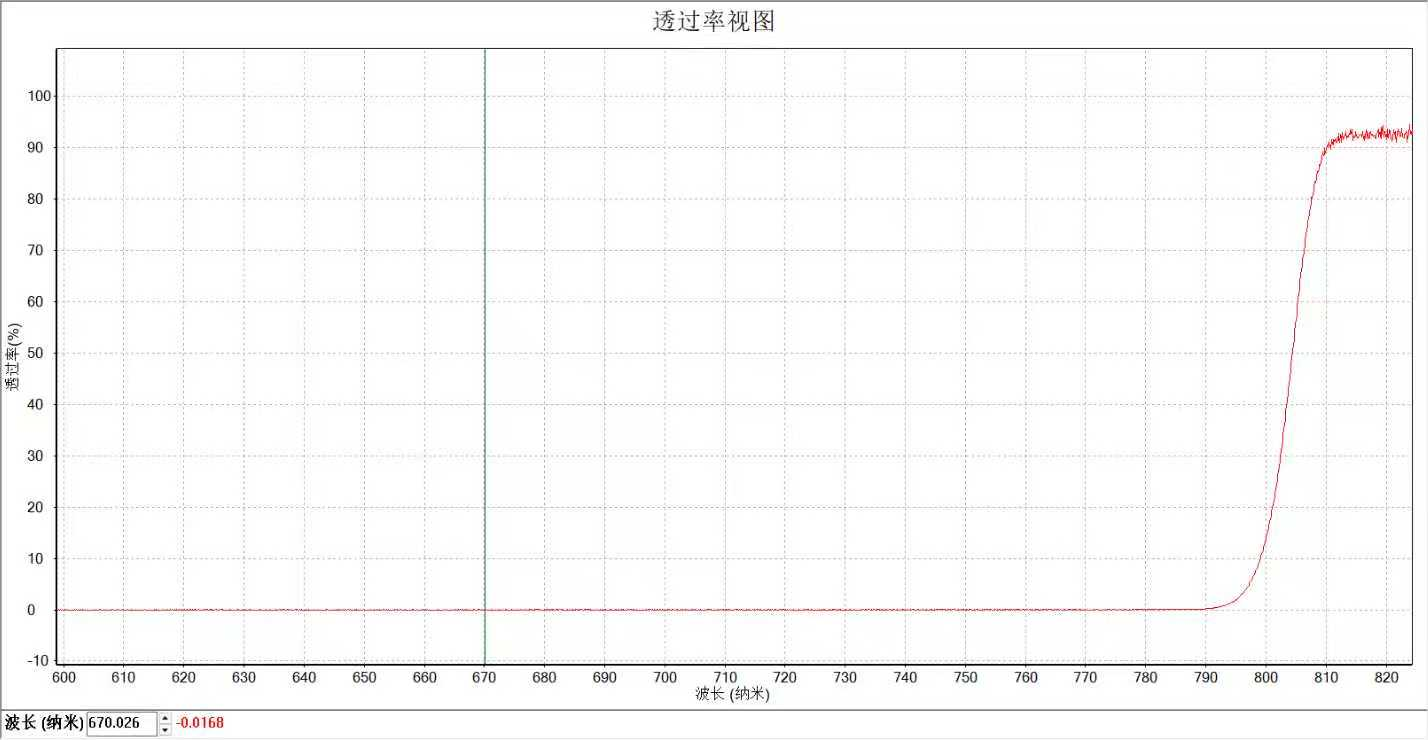

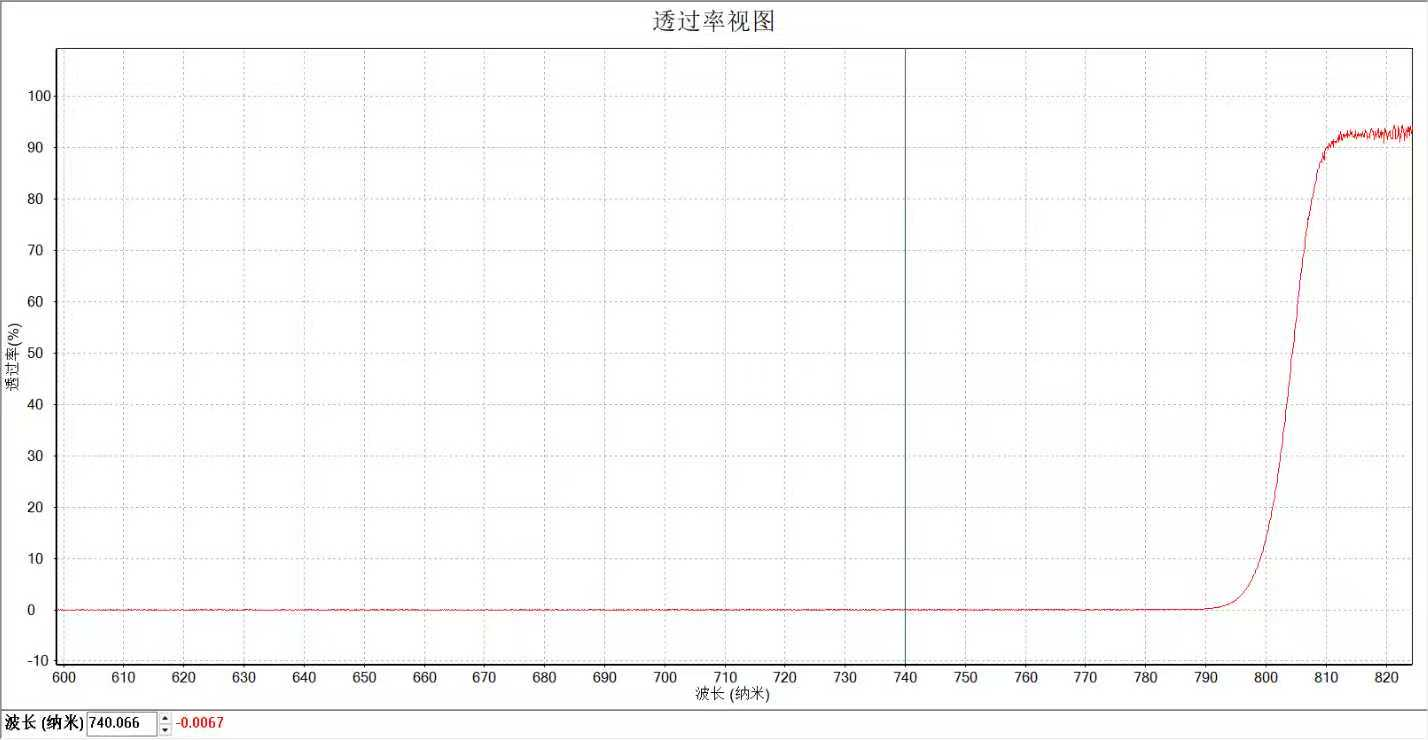

The YSM-8111-02 series represents the latest generation of high-speed IoT spectrometers. It features a USB 3.0 interface and an integrated Gigabit Ethernet port. With a minimum integration time of 9 μs, it can store up to 10,000 spectra. External trigger latency is as low as 0.9 μs with a jitter of ±20 ns, enabling spectral measurements across the 200-1100 nm range. The instrument incorporates a newly optimized, high-resolution optical system, achieving spectral resolution up to ~0.1 nm and stray light levels as low as 0.0067%.

Features

- 2048-pixel detector

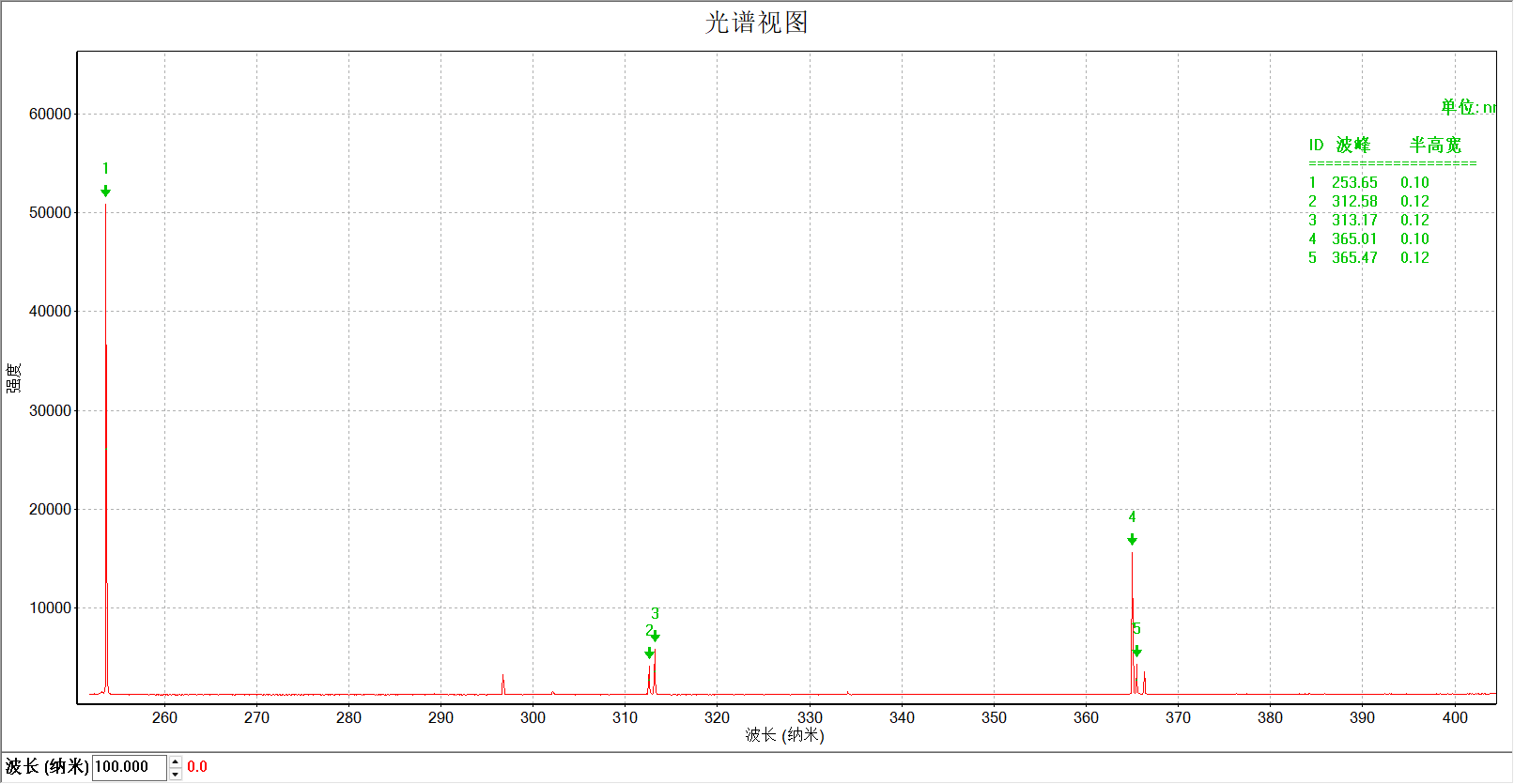

- Maximum resolution of ~0.1 nm (resolution varies with slit and grating configurations)
-Linear variable filter for suppression of second-order and higher diffraction spectra
- USB 3.0 high-speed data transfer
- Ethernet communication
- Minimum integration time of 9 µs
-External trigger delay of <0.9 µs with ±20 ns jitter
-Supports secondary development

Typical Model Recommendation

Applications

- Laser-Induced Breakdown Spectroscopy (LIBS)
- Plasma Emission Spectrometry
- Atomic Emission Spectrometry
- Laser Spectroscopy
- Semiconductor
- Photovoltaic Cell
